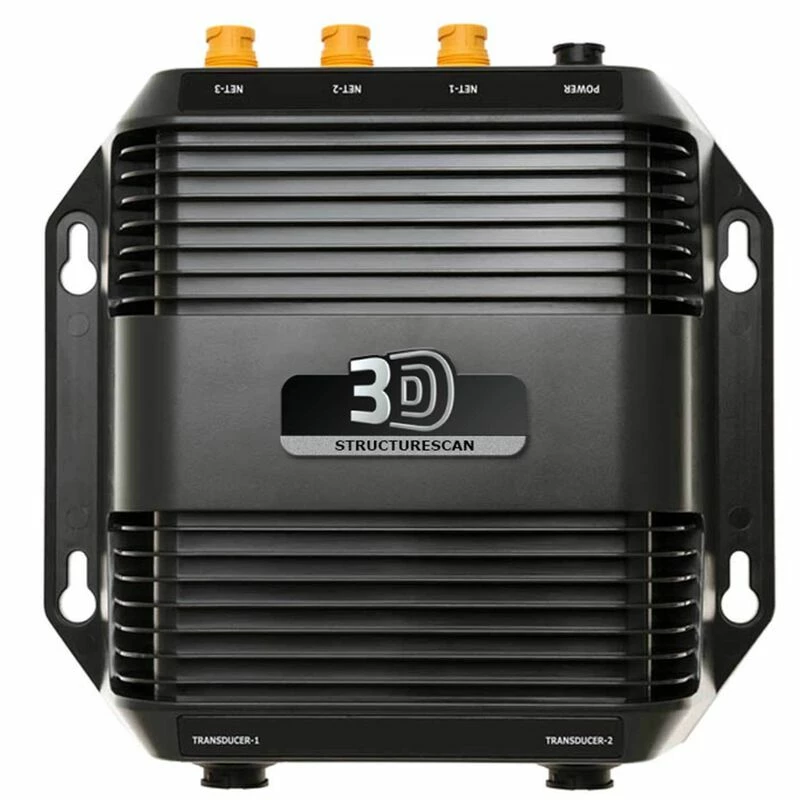

Cheap ⌛ LOWRANCE Black Box Sonar StructureScan® 3D Module ✔️

With this unique imaging view, anglers gain a better understanding of where fish and obstacles are located in relation to their boat. The picture-like, three-dimensional views are displayed on the Lowrance HDS Gen3 series of fishfinder/chartplotters, when used in combination with the StructureScan® 3D Skimmer® transducer (sold separately) and StructureScan® 3D module.

Key Features

• Multi-beam sonar: StructureScan 3D is powered by a multi-beam sonar technology that produces revealing images with stunning detail by converting scans of underwater terrain and fish-holding structure into high-resolution, 180-degree, three-dimensional views.
• Easy-to-understand sonar images: View 3D images from any angle with ScanTrack™ pan-tilt-rotate control using on-screen touch commands and easy-to-use, preset viewing positions.
• Find key fishing areas faster: StructureScan® 3D allows anglers to more easily understand where fish and fish-holding structure are located in relation to their boat. By slowly idling over a potential fishing area with the wide, 180° scanning range, anglers can quickly search for key areas and cover ─ such as abrupt depth changes, points, ditches, rockpiles, brushpiles, weedbeds standing timber, wrecks and more.
• Unrivaled sideScan image clarity: To ensure the clearest possible SideScan views, the StructureScan 3D transducer design has been enhanced with an increased number of sensors for greater imaging performance.
• High definition (HD) and super-wide 3D scanning: The contours below the water’s surface can be shown to the sides of the boat—up to 600′ port and starboard—with incredibly detailed, high-definition views.  StructureScan® 3D provides multiple views, including two-dimensional DownScan Imaging™ and StructureScan® HD, and the new, realistic three-dimensional views.  Using preset virtual point-of-view angles or ScanTrack™ pan-tilt-rotate control mode, you can adjust the view and perspective beneath your boat. Combine custom HD and 3D views to increase your understanding of how fish relate to cover and to search fishing areas more effectively.
• Ethernet connectivity: Ethernet ports allow connectivity for up to three networked devices.

Specifications

• Compatible Displays: Lowrance HDS Gen3, Simrad NSS evo2, NSO evo2, NSS evo3, NSO evo3,
• Frequency: Enhanced 455kHz
• Maximum DownScan Depth: 200′
• Maximum SideScan Range: 600′ on each side
• Speed Range: Track bottom: 35MPH; Mark objects: 15MPH; Optimum imaging: 2-8MPH
• Transmit Power: 500W (RMS)
• Voltage: 12V DC
• Amperage: Max: .75A, Typical: .60A, Inrush: 4.7A pk
• Data Interface: Ethernet
• Transducer Cable Length: 20′
• Module Dimensions: 8 1/16″W x 8 1/8″H x 2 1/4″D
• Waterproof Rating: IPX7
• Warranty: Two years
