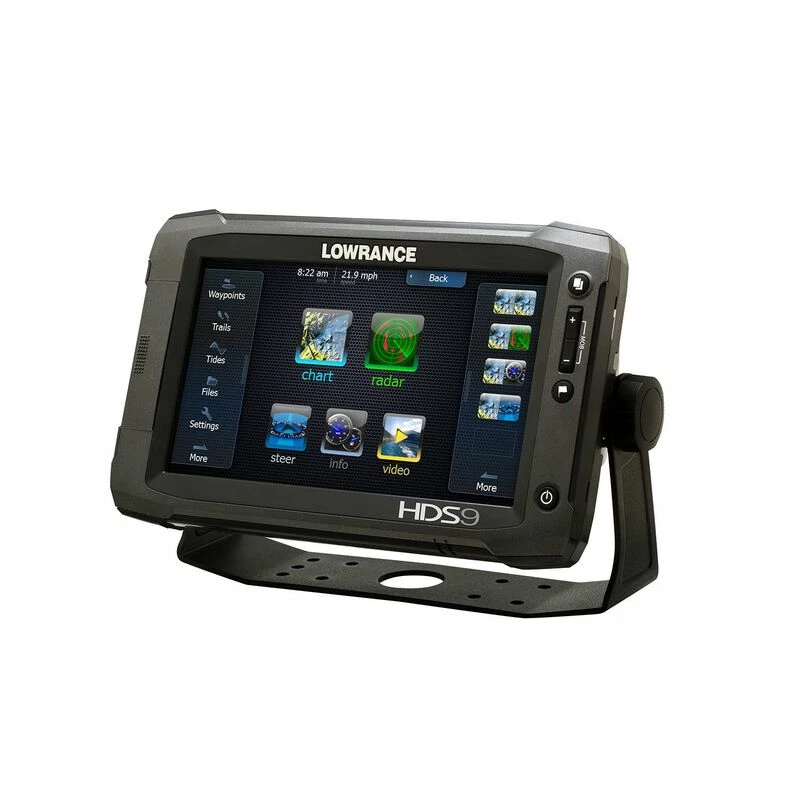

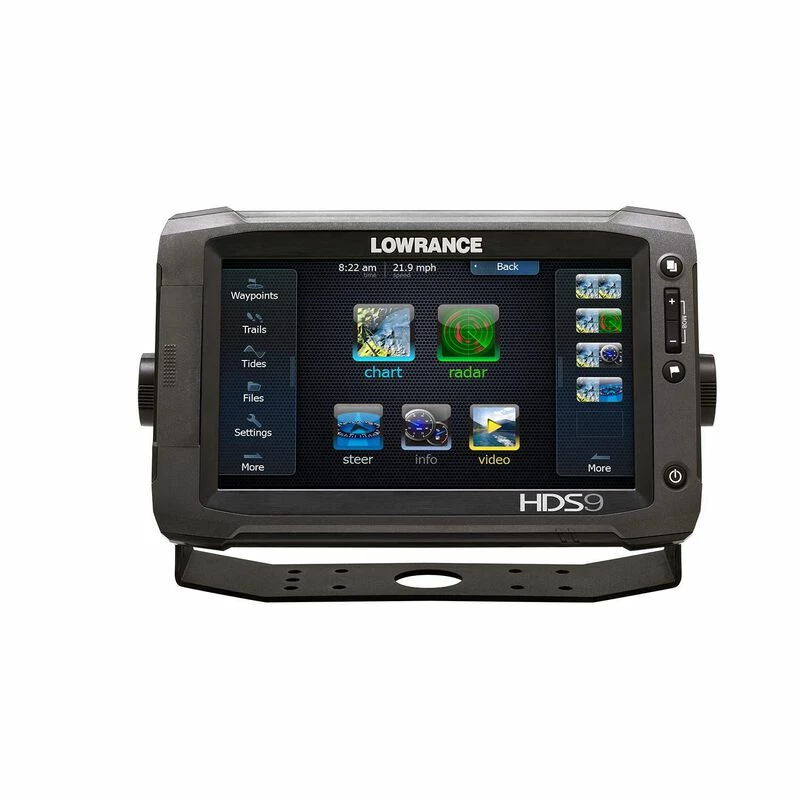

Deals 🔥 LOWRANCE Network Sensors Factory Inspected And Certified Demo Unit; HDS-9 Gen2 Touch With 83/200 KHz Tran Mt. Transducer And Insight USA Cartography 👍

High-definition, 9-inch, widescreen color display with touchscreen functionality for fast and easy operation. Unit is a factory tested and certified demo unit. 83/200 kHz Transom Mounted Transducer included.

Unlock the power of HDS with fewer button presses, making it simple to quickly master advanced features.

The first touchscreen display created with anglers in mind, it’s even easy to use in rough conditions. Plus, SolarMAX enhancements allow superior sunlight and wider-angle viewing.

• Easy-to-use touchscreen control: Powerful touchscreen with redesigned menus and five pushbutton controls simplify operation without sacrificing features.
• Built-in, four-channel sonar technology (Chartplotter/Fishfinder models only): Dedicated StructureScan HD signals for left-, right- and down-looking images, plus Broadband Sounder^®. Real-time StructureMap^® capability allows you to overlay StructureScan^® HD sonar imaging data onto your favorite chart for a lifelike underwater view with greater perspective of your boat’s position to nearby structure. Overlay DownScan Imaging^® onto your Broadband Sounder view for the ultimate fish-and structure-finding display.
• More powerful navigational tools: 3D perspective view with both Insight USA^® maps and optional Navionics charts, plus a dual-view option allows you to simultaneously use two maps at once.
• Insight Genesis^® compatibility: Make your own map! Create high-definition contours, bottom hardness and more from personalized sonar log recordings on a powerful new Lowrance web-based map creation tool.
• Wireless connectivity: WiFi-1 module compatible via Ethernet, when combined with a GoFree  Wireless app, provides remote viewing and control of HDS Gen2 Touch on the iPhone, iPad and Android devices. Wireless app, provides remote viewing and control of HDS Gen2 Touch on the iPhone, iPad and Android devices.

• Display Type: Color TFT LCD touchscreen, widescreen 16:9
• Screen Size: 9″ diagonal
• Screen Resolution: 800 x 480
• Receiver Type: Internal, high-sensitivity w/WAAS
• Preloaded Cartography: Insight USA^®
• Optional Cartography: Navionics
• Transducer: Included
• Transmit Power: Max. 31W (RMS actual) 250W peak
• Max. Depth: 5,000′
• Frequency: 50/200 or 83/200kHz + 455/800kHz
• Data Interface: NMEA 2000, NMEA 0183, Ethernet
• Voltage: 12V DC
• Draw: 0.9A @ 13V DC
• Dimensions: 10 7/16″ W x 6 11/16″H x 3 5/16″ D
• Waterproof Rating: IPX7

Alternate Transducer Options

The HDS-Touch operates either 83/200 kHz or 50/200kHz transducers, sold separately. Depending on the style of the transducer, you’ll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:

BB TRANSDUCERS BLUE CONNECTOR
Transducer Type	Reading(s)	Power	Material	Model
OB/IB Shallow Water w/Temp (Primary)	Depth/Temperature	83/200 kHz	Nylon	8803595
OB/IB Deep Water w/Temp (Primary)	Depth/Temperature	50/200 kHz	Nylon	8803603
OB/IB Deep Water w/Speed & Temp (Primary)	Depth/Speed/ Temperature	50/200 kHz	Plastic	14273866
IB Engines; Shallow or Deep Water w/Temp	Depth/Temperature	50/200 kHz	Bronze	11498805
IB Engines; Shallow or Deep Water w/Temp	Depth/Temperature	50/200 kHz	Plastic	11498375
Trolling Motor or In-Hull Mount; Shallow Water w/Temp	Depth/Temperature	83/200 kHz	Nylon	10856003
Larger Boats; 1KW Deep Water w/Temp (Primary)	Depth/Temperature	50/200 kHz	Bronze	11259314



BB Traditional and Down Scan / HDI (High Definition Imaging) Combination Transducers BLUE CONNECTOR
Transducer Type	Reading(s)	Power	Material	Model
Outboard or Inboard-Outboard; Shallow Water w/Temp	Depth/Temperature	83/200 455/800KHZ		14273965
Outboard or Inboard-Outboard; Deep Water w/Temp	Depth/Temperature	50/200 455/800KHZ		14273957
Inboard Engines; Shallow and Deep Water w/Temp	Depth/Speed/ Temperature	50/200 455/800 0	Bronze	14706600
Inboard Engines; Shallow and Deep Water w/Temp	Depth/Temperature	50/200 455/800 12	Bronze	14706618
Inboard Engines; Shallow and Deep Water w/Temp	Depth/Temperature	50/200 455/800 20	Bronze	14706626

What You May Want to Add

Compatible Cables	Model
XT-20BL-20 foot extension cable	11259322
ST-TBL Speed Temp Sensor	14272777
7 pin Blue Connector to Bare Wires	14706568
