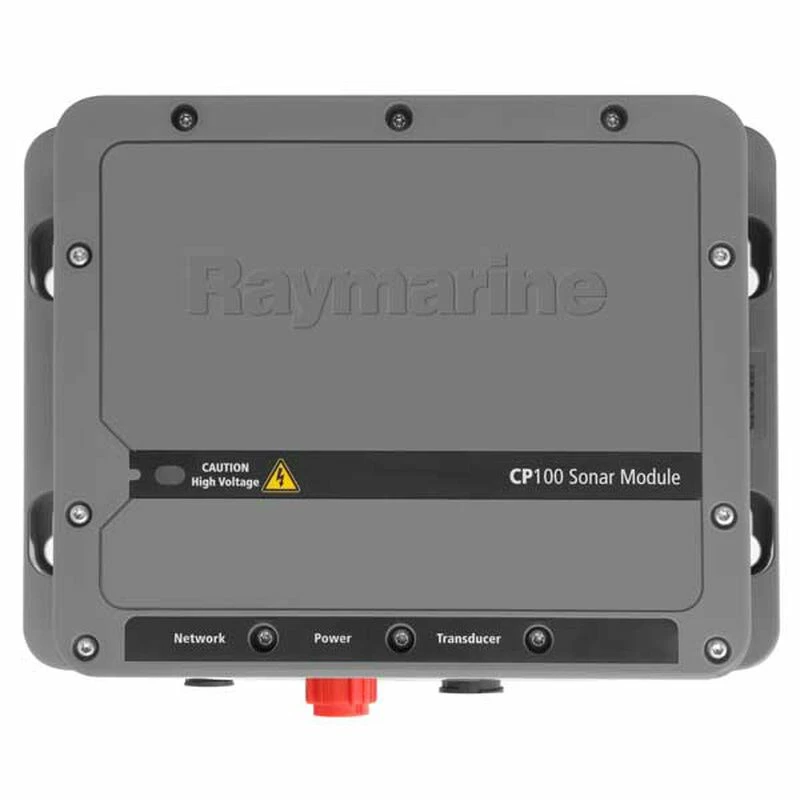

Coupon ⌛ RAYMARINE Black Box Sonar CP100 Sonar Module With CHIRP DownVision™ 🤩

The CP100 Sonar Module brings CHIRP DownVision™ technology to Raymarine’s multi-function displays.

The CP100’s delivers a photo-like view of the world beneath your boat. It does so with two independent sonar channels. The first is a high frequency range that allows you to image bottom structure with amazing detail, while the second is a lower frequency range that is optimized for imaging fish using high contrast sonar resolution.

Unlike conventional imaging sonars that transmit a single frequency with each pulse, the CP100’s DownVision™ sonar uses CHIRP technology to transmit across a wide spectrum of sonar frequencies– the result is much higher resolution, photo-like, sonar images.

CP100 Applications

Freshwater Fishing: The CP100 is an ideal sonar solution for freshwater anglers. Combined with Raymarine e-Series HybridTouch displays, the CP100 lets freshwater anglers create a multi-display network with HybridTouch control. Photo-realistic CHIRP DownVision easily identifies the habitat of bass and other freshwater species.

Coastal Fishing: With depth performance up to 600′, the CP100 is a great choice for coastal and bay fishing. Image wrecks with unmatched fidelity and use the second CHIRP channel to simultaneously target bait and predators.

Key Features

• Underwater vision: The CP100 deliver photo-like imagery of bottom structure using Raymarine’s CHIRP DownVision™ technology
• Dual Channel CHIRP sonar: view high resolution CHIRP DownVision structure imagery and target fish with CHIRP sonar simultaneously
• Perfectly matched dual beam CHIRP transducers available in transom mount, plastic thru-hull and bronze thru-hull configurations
• Fast response temperature sensor built into all three transducer options
• Network the CP100 with Raymarine’s latest generation multi-function displays. From the compact a-Series to the flagship gS-Series the CP100 brings underwater vision and affordable CHIRP fish finding to all of Raymarine’s latest generation multi-function displays.

Specifications

• Sonar Type: CHIRP and Traditional Sonar
• Frequency: CHIRP DownVision: 320-380kHz, CHIRP Fishfinder: 170-230kHz
• Maximum Depth: 600′
• Transducer: Sold separately
• Voltage: 12/24V DC
• Power Consumption: 3W at full power
• Width: 8 7/8″
• Height: 6 5/8″
• Depth: 2 13/16″
• Compatible With: a-, c- , e-, gS-Series Multi-Function Displays
• Waterproof Rating: IPX6 and IPX7
• Warranty: Three years (with product registration)

What’s in the Box

• CP100 Sounder Module
• Installation Hardware
• Document Pack
