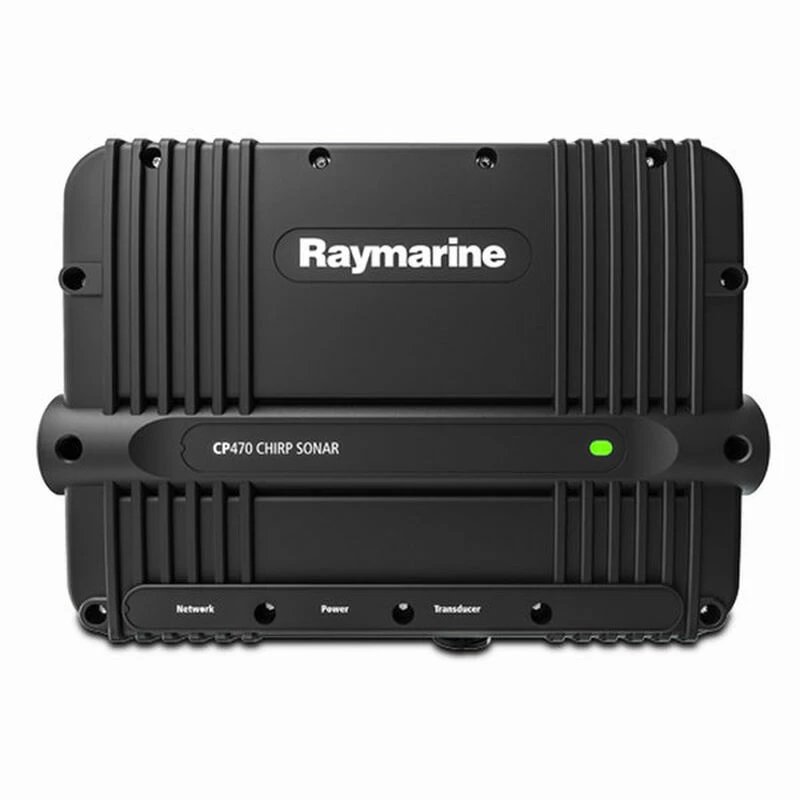

Promo ⌛ RAYMARINE Black Box Sonar CP470 CHIRP Sonar Module 👍

Superior target definition and enhanced sensitivity using Raymarine’s exclusive wide spectrum CHIRP sonar technology.

Lots of power plus CHIRP: High-resolution CHIRP sonar imagery, best-in-class target separation and up to 2,000 watts of transmit power make the CP470 CHIRP Sonar Module and exciting offshore and coastal fishing tool for serious anglers. Using a wide spectrum of frequencies and greater sensitivity, the CP470’s advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish.

Extreme depth ranges: Target fish, identify bait, and track the sea floor down to 10,000′ with two adjustable CHIRP sonar channels using Raymarine’s exclusive wide spectrum CHIRP sonar technology.

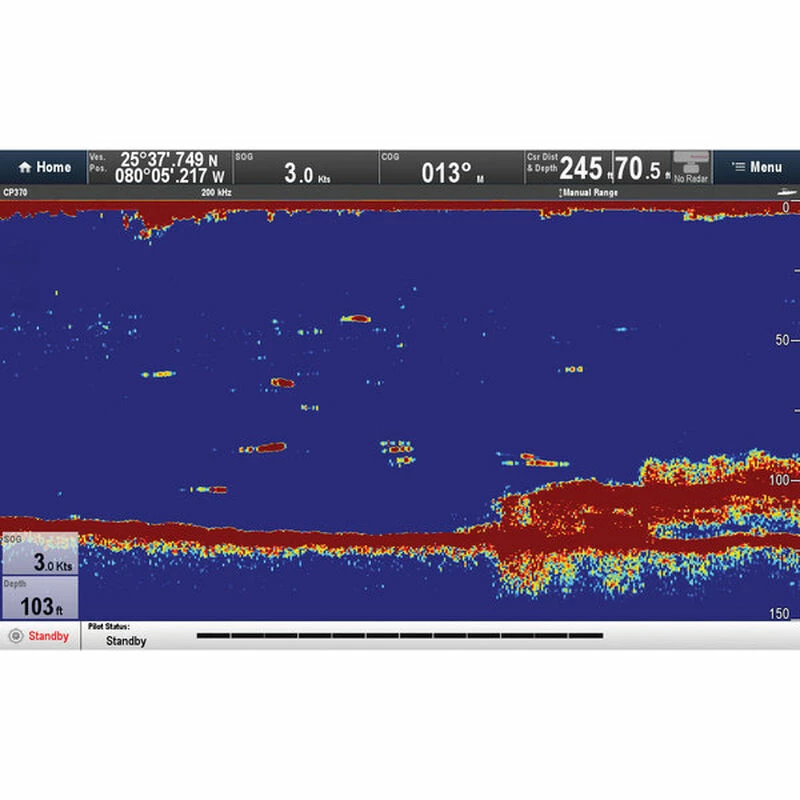

Ten times the resolution of traditional sonar: Resolution ten times that of ordinary sonars delivers stunning detail and clarity. CP470 resolves sharper, more defined fish targets using TruZoom™ magnification mode, and automatically filters out unwanted noise so you never miss the action below.

Recognizes new transducers: Choose transducers with low, medium or high CHIRP frequencies in a variety of beamwidths, and CP470 automatically recognizes connected transducers and adjust sonar parameters for optimized performance.

Independent CHIRP channels: View and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine’s LightHouse II powered multi-function displays.

Specifications

• Compatible Displays: aSeries, cSeries, eSeries, gS Series
• Transmit Power: 1kW or 2kW, depending on transducer
• Frequency: Dual CHIRP from 25 to 250kHz
• Maximum Depth: 10,000′
• Width: 7 7/8″
• Height: 7 7/8″
• Depth: 3 5/16″
• Transducer: Sold separately
• Voltage: 12/24V
• Power Consumption: 30.6W (Maximum)
• Data Interface: RayNet (SeaTalkhs)
• Waterproof Rating: IPX6
• Warranty: Three years (with product registration)

Transducer Options

This product operates best with these select transducers, sold separately. Depending on the style of the transducer, you’ll get depth, speed and/or temperature readings. To complete your installation, order one of the following transducers:

Transducer Type	Reading(s)	Material	Transmit Power	Max. Depth	Model
B265 LH Thru-Hull Transducer	Depth/Temp	Bronze	1kW	1,500′	14395552
B75 LH Thru-Hull 0º Tilt Transducer (Pair)	Depth/Temp	Bronze	600W	1,000′	14395594
B75 LH Thru-Hull 12º Tilt Transducer (Pair)	Depth/Temp	Bronze	600W	10,000′	14395602
B75 MH Thru-Hull 20º Tilt Transducer (Pair)	Depth/Temp	Bronze	600W	10,000′	14395610
AIRMAR B175LH Low/High CHIRP 0° Tilt Bronze Thru-Hull Transducer Pair	Depth/Temp	Bronze	1kW	10,000′	14395628
Airmar B175LH Low/High CHIRP 12° Tilt Bronze Thru-Hull Transducer	Depth/Temp	Bronze	1kW	10,000′	14395636
Airmar B175LH Low/High CHIRP 20° Tilt Bronze Thru-Hull Transducer Pair	Depth/Temp	Bronze	1kW	10,000′	14395644
TM265LH Transom Mount CHIRP Transducer	Depth/Temp	Plastic	1kW	10,000′	13217369
TM265 LM Transom Mount Transducer	Depth/Temp	Plastic	1kW	10,000′	14395586
M265LH In-Hull Transducer	Depth	Urethane	1kW	10,000′	14395560
M265LM In-Hull Transducer	Depth	Urethane	1kW	10,000′	14395578
R109LH-W Urethane Thru-Hull CHIRP Wide Beam 2kW Transducer	Depth	Urethane	2kW	6,000′	17834532
B175M Bronze Thru-Hull CHIRP 1kW Transducer 12 Degree	Depth/Temp	Bronze	1kW	1,500′	17834730
B175M Bronze Thru-Hull CHIRP 1kW Transducer 20 Degree	Depth/Temp	Bronze	1kW	1,500′	17834755
B75M Bronze Thru-Hull CHIRP Transducer 20 Degree	Depth/Temp	Bronze	600W	900′	17834649
B75M Bronze Thru-Hull CHIRP 300W Transducer 12 Degree	Depth/Temp	Bronze	600W	900′	17834623
B75H Bronze Thru-Hull CHIRP 300W Transducer 12 Degree	Depth/Temp	Bronze	600W	900′	17834631
TM275LH-W Urethane Transom Mount CHIRP Wide Beam 1kW Transducer	Depth/Temp	Urethane	1kW	3,000′	17834482
B175H-W Bronze Thru-Hull CHIRP Wide Beam 1kW Transducer, 0 Degree	Depth/Temp	Bronze	1kW	800′	17834490
B175H-W Bronze Thru-Hull CHIRP Wide Beam 1kW Transducer, 12 Degree	Depth/Temp	Bronze	1kW	800′	17834508
B175H-W Bronze Thru-Hull CHIRP Wide Beam 1kW Transducer, 20 Degree	Depth/Temp	Bronze	1kW	800′	17834516
B275LH-W BronzeThru-Hull CHIRP Wide Beam 1kW Transducer	Depth/Temp	Bronze	1kW	3,000′	17834524
R509LH-W Thru-Hull CHIRP Wide Beam 3kW Transducer	Depth/Temp	Urethane	3kW	10,000′	17834540
PM275LH-W Bronze In-Hull CHIRP Wide Beam 1kW Transducer	Depth	Urethane	1kW	3,000′	17834557
PM111LH-W Urethane In-Hull CHIRP Wide Beam 2kW	Depth	Urethane	2kW	6,000′	17834565
R111LH Urethane In-Hull CHIRP 2kW Transducer	Depth	Urethane	1kW	6,000′	17834573
R111LM Urethane In-Hull CHIRP 2kW Transducer	Depth	Urethane	2kW	6,000′	17834581
R599LH Urethane In-Hull CHIRP 3kW Transducer	Depth	Urethane	3kW	10,000′	17834599
R599LM Urethane In-Hull CHIRP 3kW Transducer	Depth	Urethane	3kW	10,000′	17834607
B75H Bronze Thru-Hull CHIRP Transducer 20 Degree	Depth/Temp	Bronze	600W	900′	17834656
B75LM Bronze Thru-Hull CHIRP Transducer Pair 0 Degree	Depth/Temp	Bronze	600W	900′	17834664
B75MH Bronze Thru-Hull CHIRP Transducer Pair 0 Degree	Depth/Temp	Bronze	600W	900′	17834672
B75LM Bronze Thru-Hull CHIRP Transducer Pair 12 Degree	Depth/Temp	Bronze	600W	900′	17834680
B175L Bronze Thru-Hull CHIRP 1kW Transducer 0 Degree	Depth/Temp	Bronze	1kW	2,500′	17834698
B175M Bronze Thru-Hull CHIRP 1kW Transducer 0 Degree	Depth/Temp	Bronze	1kW	1,500′	17834706
B175H Bronze Thru-Hull CHIRP 1kW Transducer 0 Degree	Depth/Temp	Bronze	1kW	1,000′	17834714
B175L Bronze Thru-Hull CHIRP 1kW Transducer 12 Degree	Depth/Temp	Bronze	1kW	2,500′	17834722
B175H Bronze Thru-Hull CHIRP 1kW Transducer 12 Degree	Depth/Temp	Bronze	1kW	1,000′	17834748
B175LM Bronze Thru-Hull CHIRP 1kW Transducer Pair 0 Degree Pair	Depth/Temp	Bronze	1kW	2,500′	17834763
B175MH Bronze Thru-Hull CHIRP 1kW Transducer Pair 0 Degree Pair	Depth/Temp	Bronze	1kW	1,500′	17834771
B175LM Bronze Thru-Hull CHIRP 1kW Transducer Pair 12 Degree Pair	Depth/Temp	Bronze	1kW	2,500′	17834789
B175MH Bronze Thru-Hull CHIRP 1kW Transducer Pair 12 Degree Pair	Depth/Temp	Bronze	1kW	1,500′	17834797
B175LM Bronze Thru-Hull CHIRP 1kW Transducer Pair 20 Degree Pair	Depth/Temp	Bronze	1kW	2,500′	17834805
B175MH Bronze Thru-Hull CHIRP 1kW Transducer Pair 20 Degree Pair	Depth/Temp	Bronze	1kW	1,500′	17834813
R109LH Urethane Thru-Hull CHIRP 2kW Transducer	Depth/Temp	Urethane	2kW	6,000′	17834821
R109LM Urethane Thru-Hull CHIRP 2kW Transducer	Depth/Temp	Urethane	2kW	6,000′	17834839
R109LM Urethane Thru-Hull CHIRP 2kW Transducer	Depth/Temp	Urethane	3kW	10,000′	17834847
