Wholesale 😉 RAYMARINE Transducers RealVision 3D™ 20° Thru-Hull CHIRP Transducer, Port 🎁

Raymarine’s RealVision 3D bronze and plastic transducer are available individually for use as spares.

• Each transducer array is fitted with a 2-meter (6’7″) pigtail.
• To create a complete transducer system, you will need both a port and starboard transducer array, as well as a RealVision 3D Y-Cable and an extension cable of suitable length to reach to your Axiom RealVision 3D display.
• This transducer array is specifically engineered for port side service.

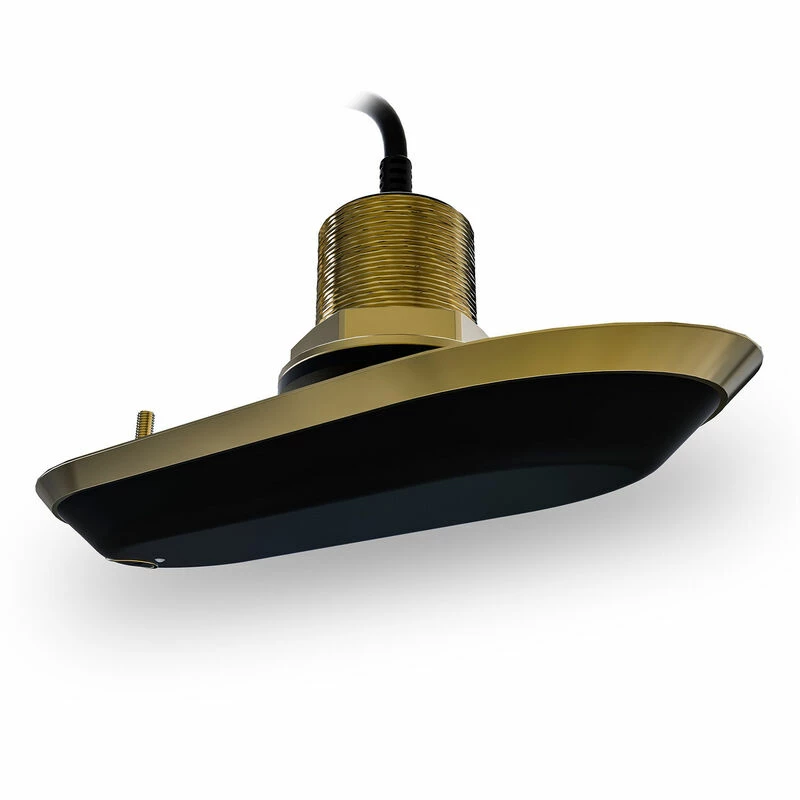

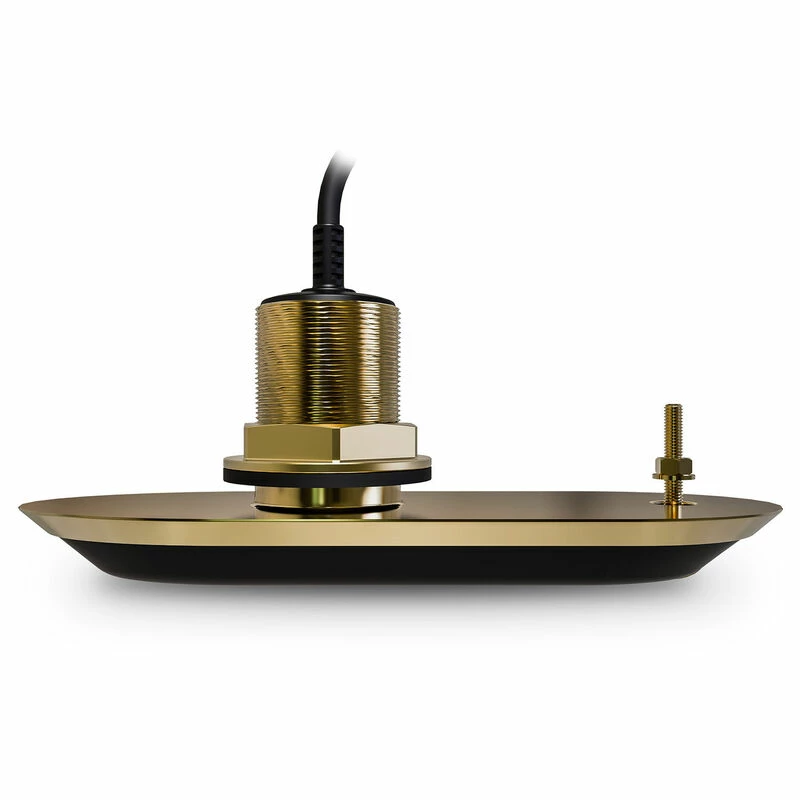

Designed for inboard or outboard boats, the RV-220 Bronze Thru-Hull Transducer System lets you easily identify structures and locate fish with the lifelike clarity of RealVision 3D™ sonar.

RealVision 3D transducers have internal offset to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.

The RV-220 system features rugged cast-bronze thru-hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions.

Key Features

• Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
• Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
• Easy fish identification: Easily identify structure and locate fish with the lifelike clarity of RealVision™ 3D sonar
• Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, high frequency CHIRP, and 600W  50/200kHz traditional sonar
• The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion
• You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering
• Built-in fast response water temperature sensor for quick, accurate readings

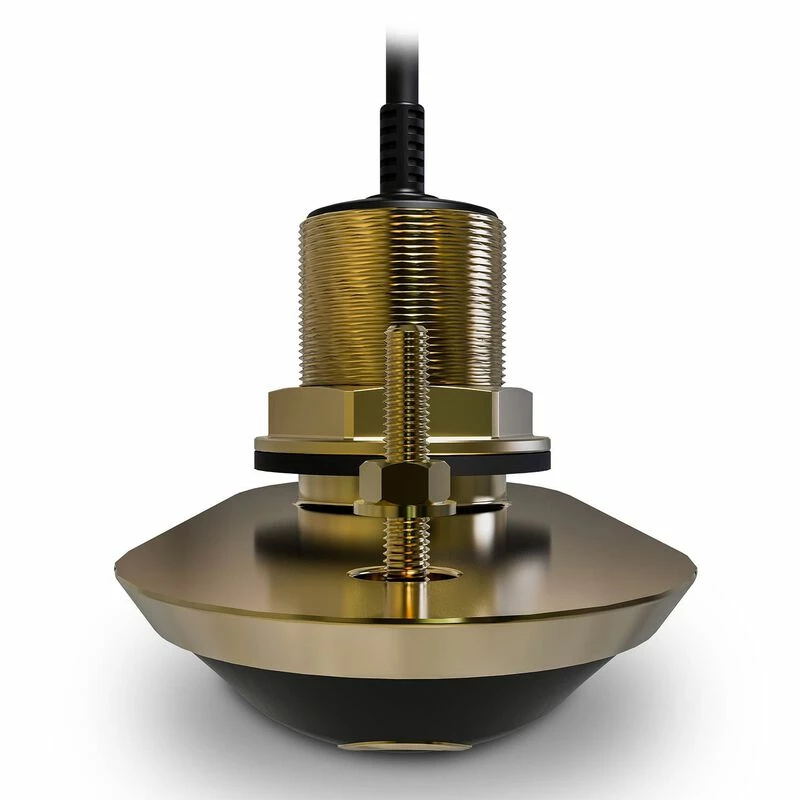

• Rugged cast-bronze thru-hull bodies suitable for fiberglass or wooden hulls
• One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions
• The low-profile design slips effortlessly through the water without causing drag or cavitation
• Each transducer features a 2-meter pigtail
• The near-flush RV-220 system works great on trailered boats too, and with no fairing block to cut, installation is a breeze

Specifications

• Application: Axiom displays
• Style: Port side thru-hull (additional starboard side transducer and 8m extension cable required
• Cable Length: 6’7″ pigtail
• Connector: 25-Pin Connector
• Monitors: Depth/Temperature
• Material: Bronze
• Transmit Power: 100W (CHIRP); 600W traditional (RMS)
• Frequency: 50/200kHz traditional; DownVision, SideVision, CHIRP and RealVision 3D
• Deadrise Angle: 13° to 20° offset for port side mounting
• Max. Depth: Traditional: 900′; 3D: 300′; CHIRP DownVision: 300′; CHIRP SideVision: 300′
• Beamwidths: 180°  total
